Motor-cycle gate-way Model: Ww-120 (2-ways)

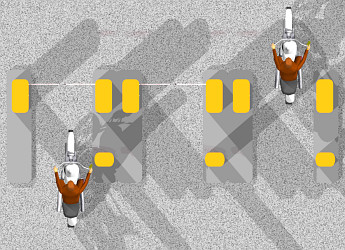

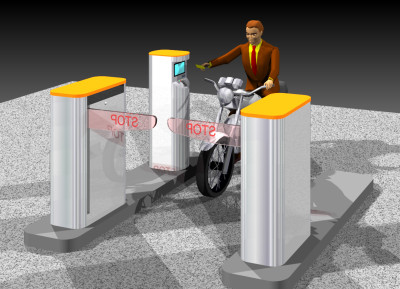

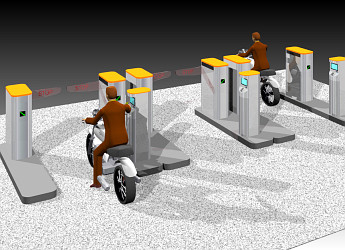

Principle A sensor controlled passageway with acrylic glass wings to prevent unauthorized passage provides excellent access control within 1 second On / Off switch. Designed to be in sight of motor-cycle, the Argus takes the problem out of checking individual passes whilst allowing authorized access to pass unhindered. The unit is at its optimum when used in conjunction with a hands free access system which allows the glass wings to stay in the open position until an unauthorized person is detected.
Finish • Steel, painted according to RAL • Stainless steel, satin finish Other models on request
Door leave • Normal height, rectangular • Extra height, rectangular Customized design by agreement
Reader interface Compatible with access control systems standards • serial interfaces • fieldbus cross linkage Special interfaces, signal exchange with building services automation and connection of customer supplied control elements available on request. Export variants on request
Construction Casing and guiding tube sheets of high-quality. Glazing: 10 mm acrylic glass
Operation The door leaves open and close automatically. Adjustable modes of operation are: • open ground state The door leaves are being closed automatically as soon as an unauthorized passage is registered. • closed ground state The door leaves are being opened automatically in vice verses. Adjustable loop count speed.
Electrical Equipment Control integrated in the unit supply: 230 V AC 50 Hz
Options · Installation of card readers · Signal equipment · Control desk or panel for remote control (release & block) · Mode selection switch · Railing elements for flow guidance or as barrier in a suitable design · Counting mechanism
